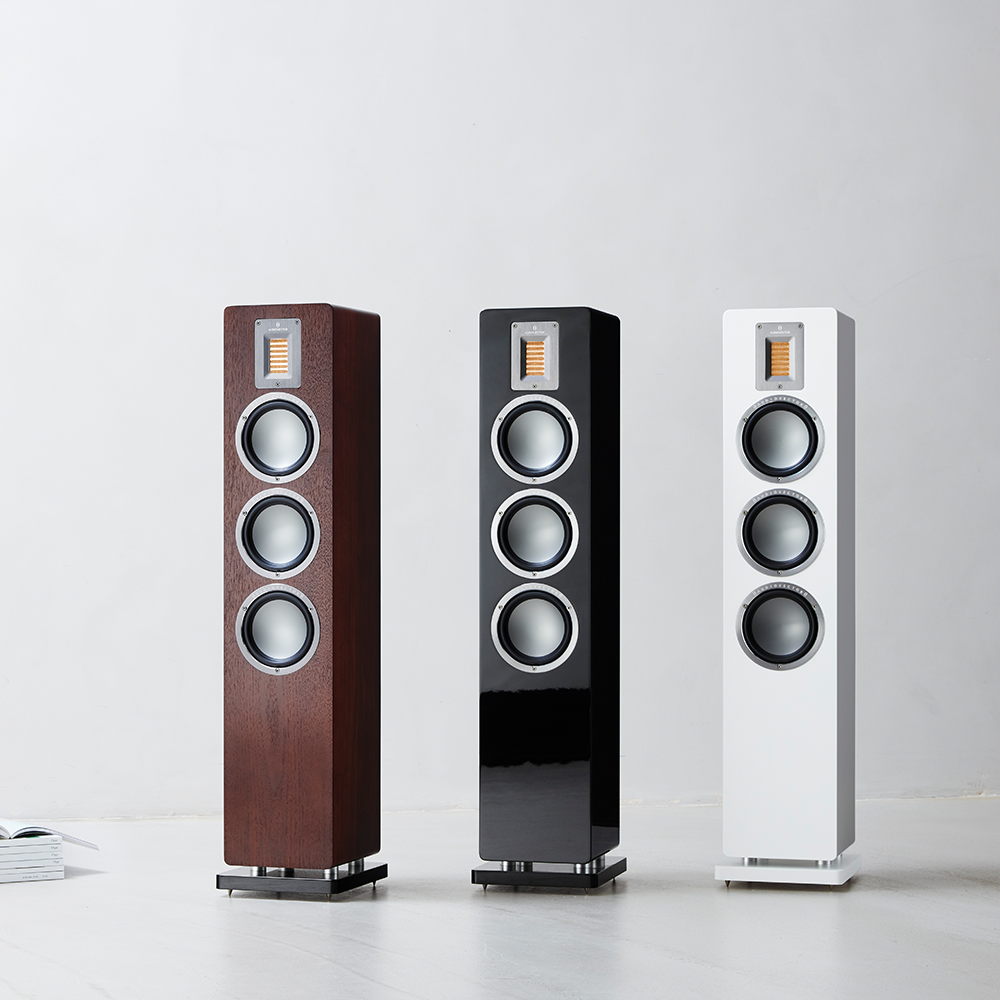

Audiovector QR 5 SE Loudspeaker
The design goal of the QR SE series has always been to offer the most advanced technology in a perfectly finished and proportioned high-end package. The sound is big, bold, and dynamic, yet subtle and detailed when required—an excellent solution for all types of music.
The fascia plate of the Gold Leaf Air Motion Tweeter is machined from a single piece of Aerospace Grade Aluminium. It has been precision machined, glass blasted, brushed and then anodised in an attractive Tungsten Titanium Grey. It features a rose gold-plated dispersion mesh, which works as an S-Stop filter.
The new SE models all feature subtle, elegant, yet highly recognisable golden brass badges on the front panels and cloth grilles.
Audiovector's new highly specialised double cryogenic polypropylene tin flash copper capacitors are the result of constant listening, measuring, and improvement. They provide our AMT tweeters with the best possible conditions for sounding even sweeter, more detailed, and more open. The use of cryogenically treated pure copper wiring and Audiovector Nanopore damping material creates a smooth and natural musical reproduction.
Colours and Veneers
Audiovector only use carefully selected real wood veneers.
Standard finishes, including cloth grilles:
- white silk
- dark walnut
- black piano
The Audiovector Pure piston dual magnet bass drive units have the ability to work like a perfect piston over several octaves of the frequency band without the distortion normally found in aluminium/diamond drive units. This means music sounds warm, precise, and detailed, yet dynamic and musical.
Due to the gentle impedance load and high efficiency of 90dB the QR 3 SE is an easily driven speaker – perfect fit and an easy match for solid state and tube amplifiers.
With the addition of the powerful QR Sub SE, the detailed QR C SE, and the easily placed QR Wall SE, Audiovector are proud to deliver a very strong and powerful home cinema speaker solution.
Meet the Next Generation of Advanced Sound
The QR SPECIAL EDITION is the result of continuous innovation that aims to bring listeners closer to the soul of the original music…and to make listeners really feel the music.
You’ll notice the improvements from the very first note:
New in-house designed capacitors result in a cleaner treble and improved detailingImproved heat dissipation via metal housed resistors delivers even more stable high-power precisionCryogenically treated internal wiring improves dynamics and detailingStrategically positioned Nano Pore dampening material enhances midrange opennessBass reflex optimisation increases precisionStainless steel high-end spikes with knurled nuts allows easier micro adjustment
- FREQUENCY RESPONSE: 24-45 kHz
- GOLD LEAF UPPER LIMIT: 102 kHz
- TREBLE SYSTEM: Gold Leaf AMT 2 with S-stop
- MIDRANGE DRIVERS: 6” Pure Piston Mid
- BASS DRIVERS: 2 x 6” Pure Piston Technology
- BASS SYSTEM: Q-port bass reflex
- PRINCIPLE: 3 Way
- X-OVER FREQUENCIES: 400/3000 Hz
- SENSITIVITY: 91 dB/W/m
- POWER HANDLING (MUSIC): 300 W
- IMPEDANCE: 4 Ohms
- DIMENSIONS CM HEIGHT/WIDTH/DEPTH: 105,7 x 21 x 27
